TECLOCK Depth Gauges
This is an exclusive instrument which measures steps and depth of work piece by hand.
Setting “0” by sticking bottom face to measuring basics (zero point) and rotating bezel. (Bezel is fixed by clamp at that time.).
Then, it reads with short hand and pointer how contact point is salient from that position.
Analog and Digital models are available and they correspond to usage of shape of contact point and basic size. There are such standard models of stroke of 10mm, 20mm and 30mm and it can comparatively measure depth of 220mm to 240mm by connecting extension rods.
Setting “0” by sticking bottom face to measuring basics (zero point) and rotating bezel. (Bezel is fixed by clamp at that time.).
Then, it reads with short hand and pointer how contact point is salient from that position.
Analog and Digital models are available and they correspond to usage of shape of contact point and basic size. There are such standard models of stroke of 10mm, 20mm and 30mm and it can comparatively measure depth of 220mm to 240mm by connecting extension rods.

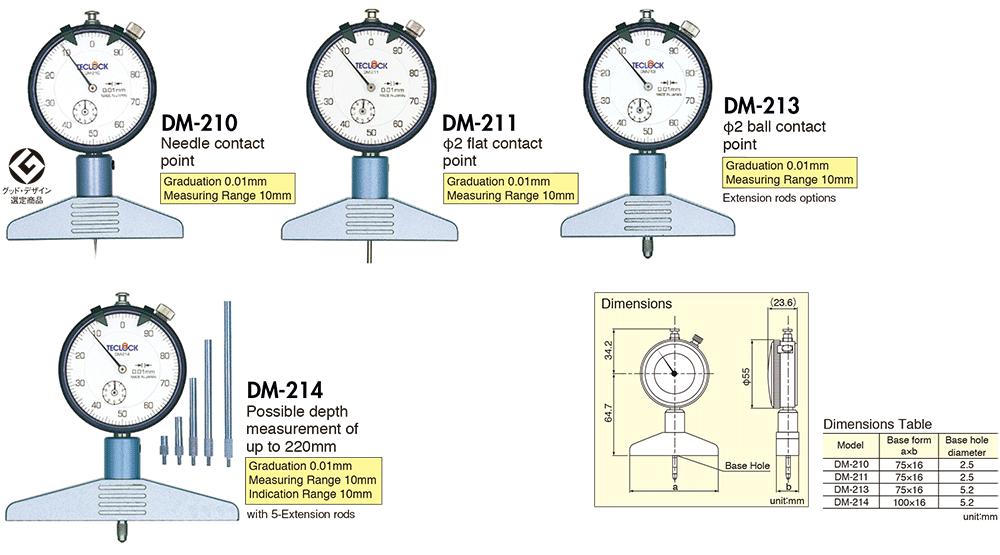

Dial Depth Gauges
feature
- Dial Depth Gauge can be used to measure depth and steps of work piece and coating thickness.
- 5-240mm range (with the supplied extension rods) are available for wide application.
- Special order is applicable for contact point and base.
- Low measuring force type is also available, which seldom hurts work piece.
- Lifting lever (Option) can be mounted.

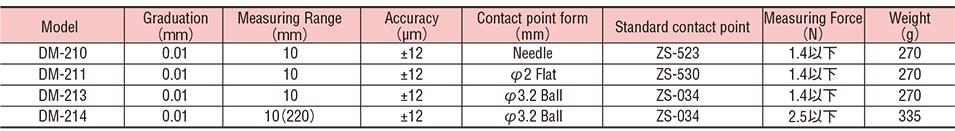

spec
For a better look click on the image above.
