DIGITECH Spring Testers

Adoption of 8.4” color LCD touch panel furthers excellent visibility and operability.
In particular, the adoption of Jog Shuttle controller for operability, it can be regulated by hand while gazing upon test piece.
In addition, the test result can be printed out immediately with the internal thermal printer.
Any result data in continuous testing can be picked up.
An USB 1.1 port is applied for making it possible to transmit data in high speed with PC by external connection.

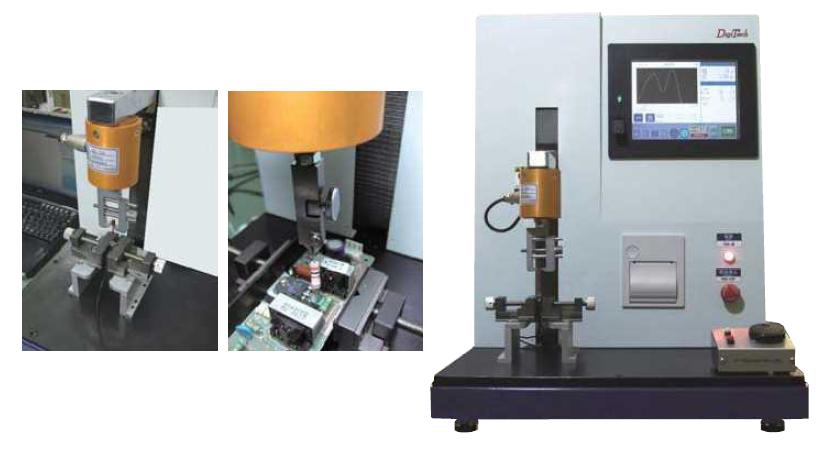

Automatic Multi Force Analyzer

feature

  • The smallest displacement setting unit is to 0.01mm for proper implementation of the pressure control to detect load data,
  • Through load setting any pressure force is precisely controlled to detect the amount of deformation and displacement data of the test piece
  • Displaying bar graph or waveform of specification judgment can realize measurement data visually
  • JOG Shuttle controller is applied for manual control, start and stop of the tester can be performed by hand,
  • Test result and statistics data can be immediately printed out by internal printer
  • Using USB can perform the high speed communications with PC, and able to control tester or deal with data by option software,
  • Conjunction with contact points of switches and connectors, the instant contacting value of ON and OFF can be detected.
  • ACIOOV ~ 240V universal input power supply is used for applying in either domestic or international without confusing,

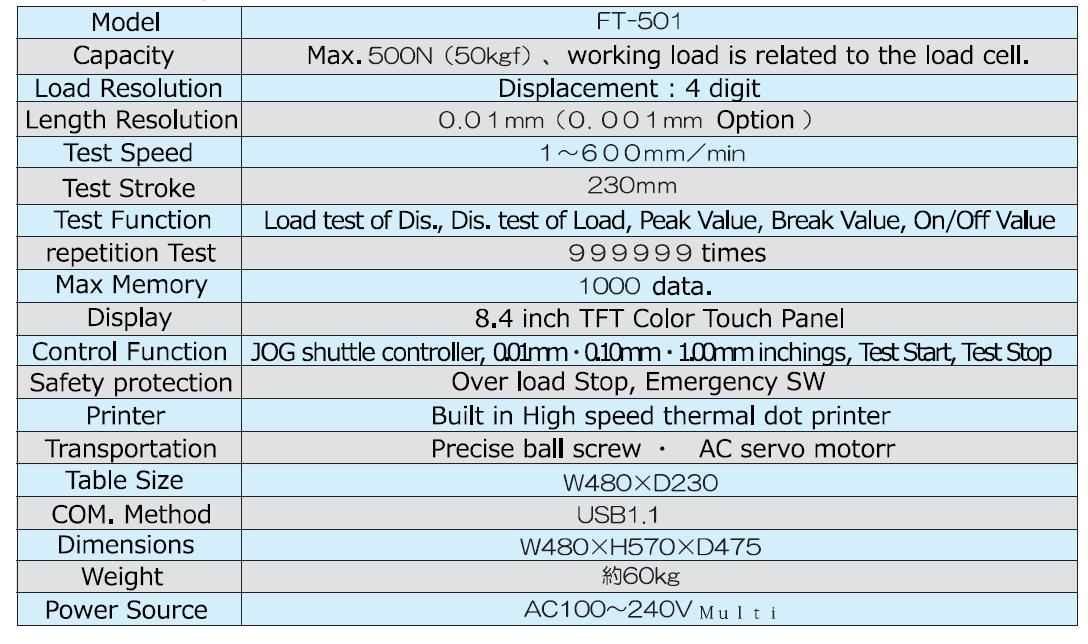

spec

For a better look click on the image above.

PDF Download

DIGITECH Spring Testers PDF
  • Automatic Multi Force Analyzer
  • Automatic Swich Feeling Analyzer
  • Automatic Spring Tester
  • Automatic Torsion Spring Tester
  • and more
