TECLOCK Test Indicators
Dial Test Indicators are designed to the positioned for easy and accurate readability and are applicable for various usages such as measuring dimension, parallelism and centering of work piece and measuring revolution axis of machinery equipment and turnout of work pieces processed by lathe etc., and making table face of machinery equipment parallel. This has strong point if compared with standard dial indicators and has sensitivity for microscopic dimension displacement measurement. As its stylus is leg type with ball edge, narrow space can be measured, where its edge (standard φ2mm ultra hand ball ) can enter.
φ0.6mm, φ0.8mm and φ1.0mm are available.
φ0.6mm, φ0.8mm and φ1.0mm are available.

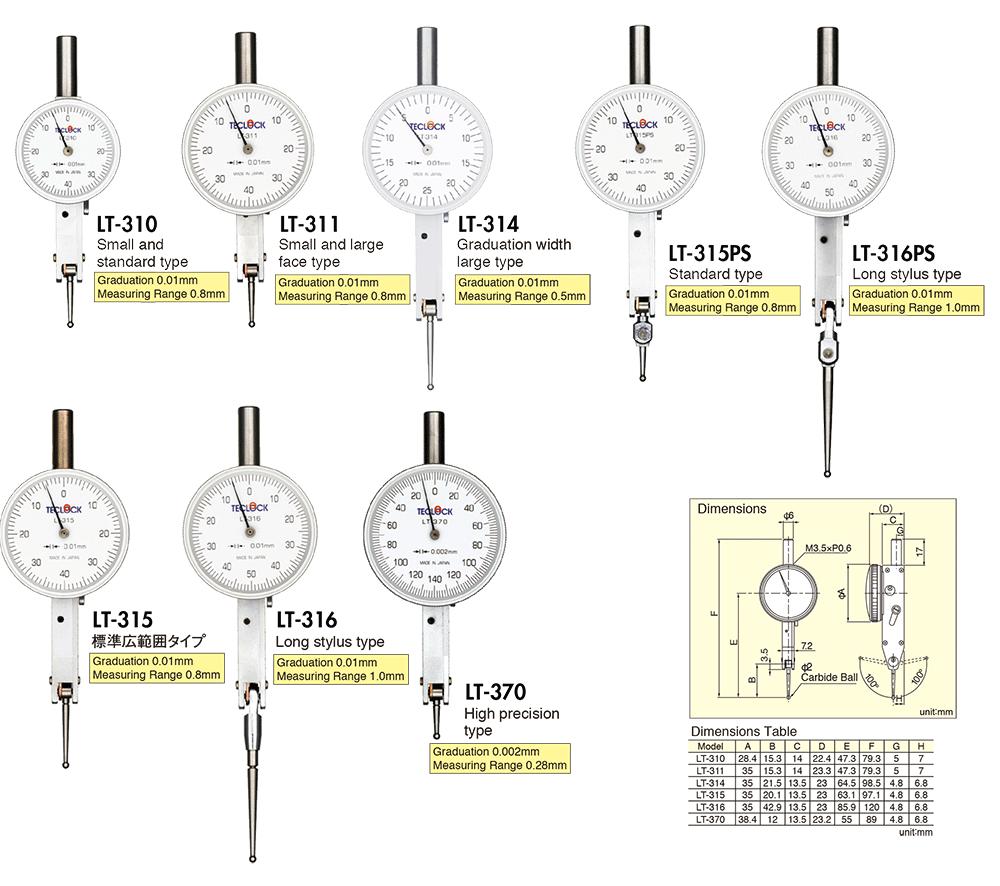

Lever type Test Indicators
feature
- Measuring direction can be changed with change lever.
- Main bearings are jeweled for all models.
- A carbide ball stylus is provided for less abrasion.
- Stylus is made of φ2mm stainless steel and it is unique threaded type which can be changed easily.
- Stylus and pointer are anti-magnetic and not affected by magnetism.
- Due to the low measuring force, this is suitable for measurement of thin work piece as well.

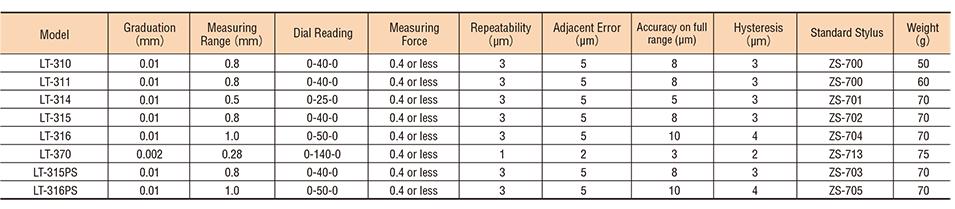

spec
For a better look click on the image above.
